Moodboard

How to create a place for happiness ? In that project the Zen japanese garden our clients owned a property close to Chesham Bois, proximity of nature. The garden of tomorrow, oriented to the woods will be built first by autonomia in water, which implicate rainwater recuperation, secondly by introducing, reveling, rediscovering the biodiversity through their garden like an oasis of nature. Third point should be the measurement of the sensibility of the client to climate change. Apparently they are sensible to the bees, the kitchen garden, conviviality, wild life (in the brief).

After a study of the site, most of the point revealed in that project are :

  1. introducing bees,

  2. finding an ideal place for dining & having lunch,

  3. a bocce area,

  4. a retreat area with the view to the woods,

  5. the lawn will be replace by wild flowers meadow,

  6. the terrace will be made in natural stone.

I choose to introduce a “zen” ambiance through Japanese influence, on the left corner of the garden around the existing magnolia, inspirated by the National arboretum in Washington, D.C. through the vision of Reed Hilderbrand and Trahan Architects.

All the materials should be sustainable and durable. The level will be alined to the house level in order to drain the rainwater. The source for this project is a painting from C.Monet cited by the client has his favorite painter. The design concept is born arround the “Nympheas et Agapanthes" (Waterlillies a. Agapanthus) included in the moodboard. The theme of water and blue color palette are central in this project as in the work of Claude Monet.

This painting will be revealed between the terrace and the meadow. A large rectangular pool of water circling by agapanthus will be created.

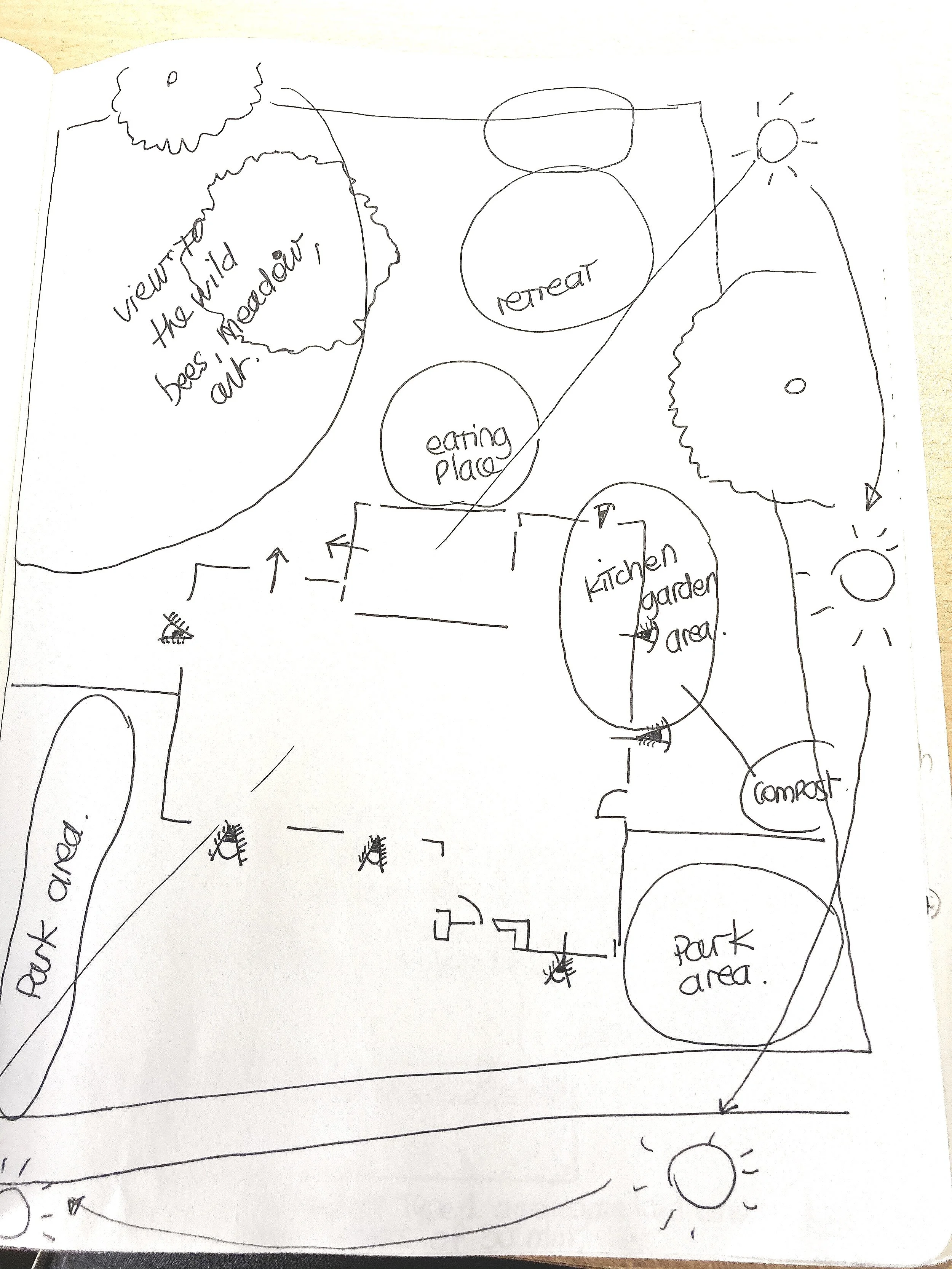

Hand-drawn diagram of a backyard setup with labeled areas including a park area, picnic area, eating place, kitchen garden area, compost, and a retreat. The diagram also shows sunlight, trees, and a view of the wild woods behind the yard.

Circulations

Hand-drawn landscape plan with sketches, photos, and color highlights of outdoors including a patio, lawn, trees, and garden beds.

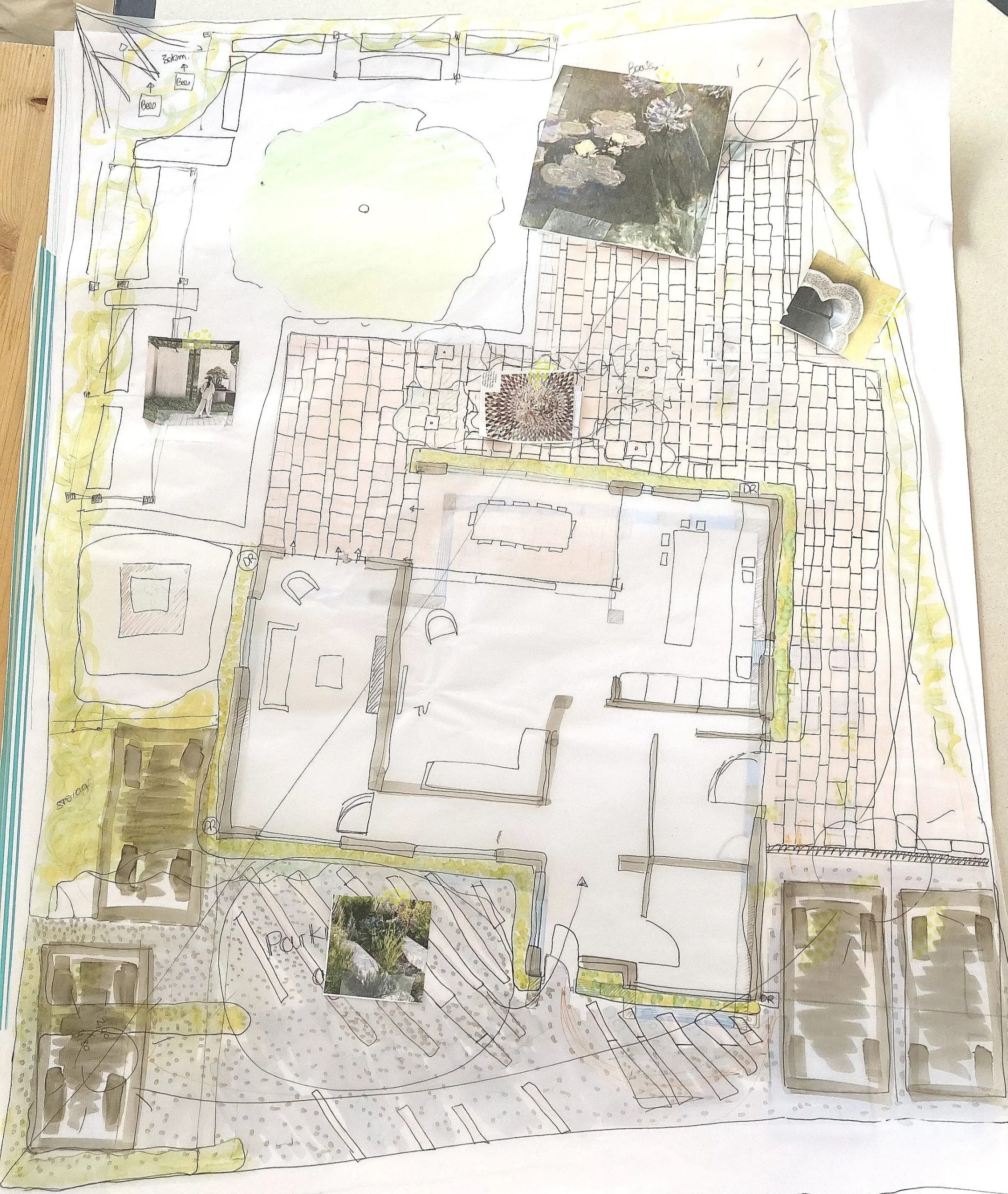

Scaling elements of the project, sketch.

A hand-drawn landscape plan featuring trees, a pond, garden beds, a brick patio, vegetable garden, path, and various outdoor structures.

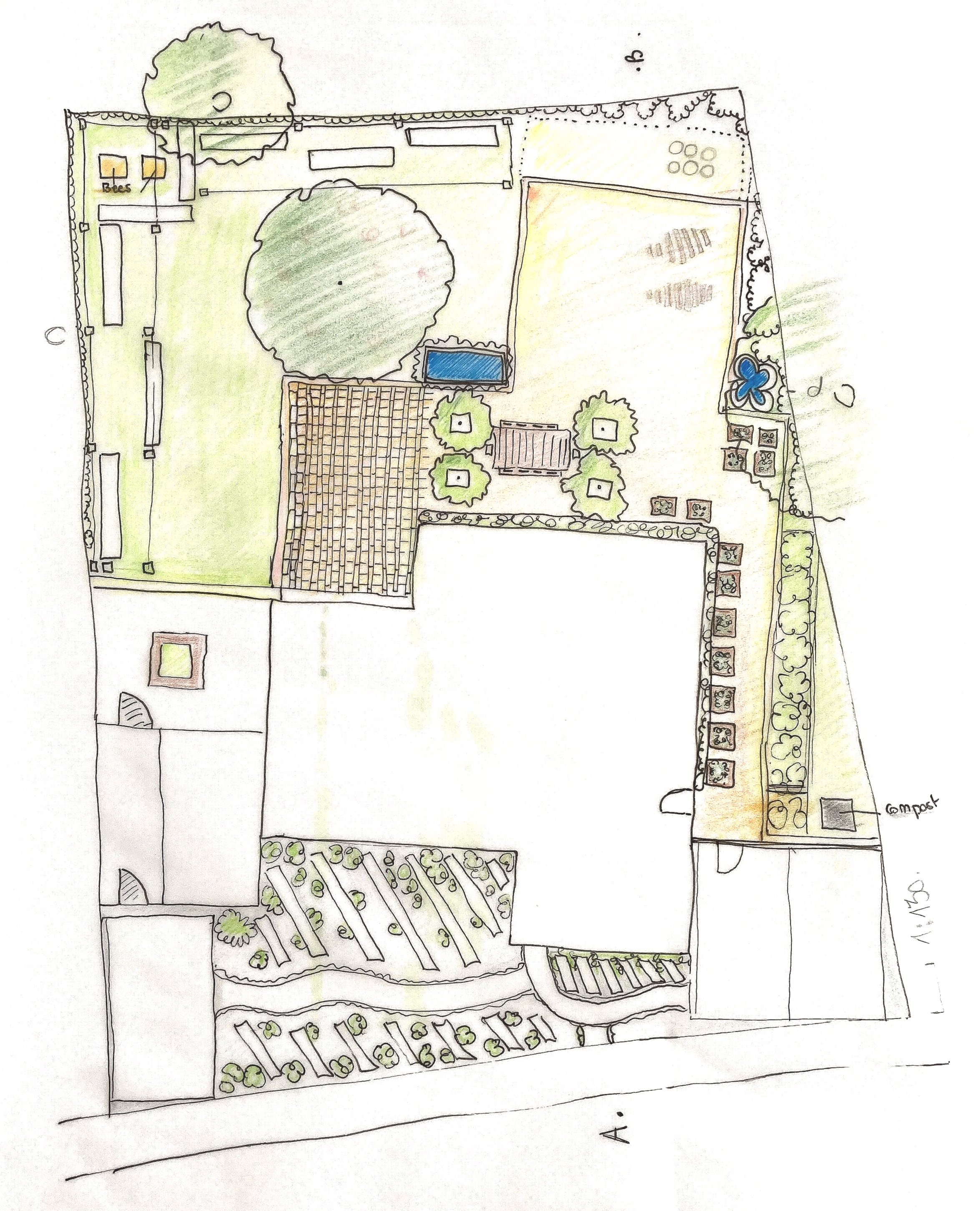

Final plan of the garden scaled 1.130, sketch.

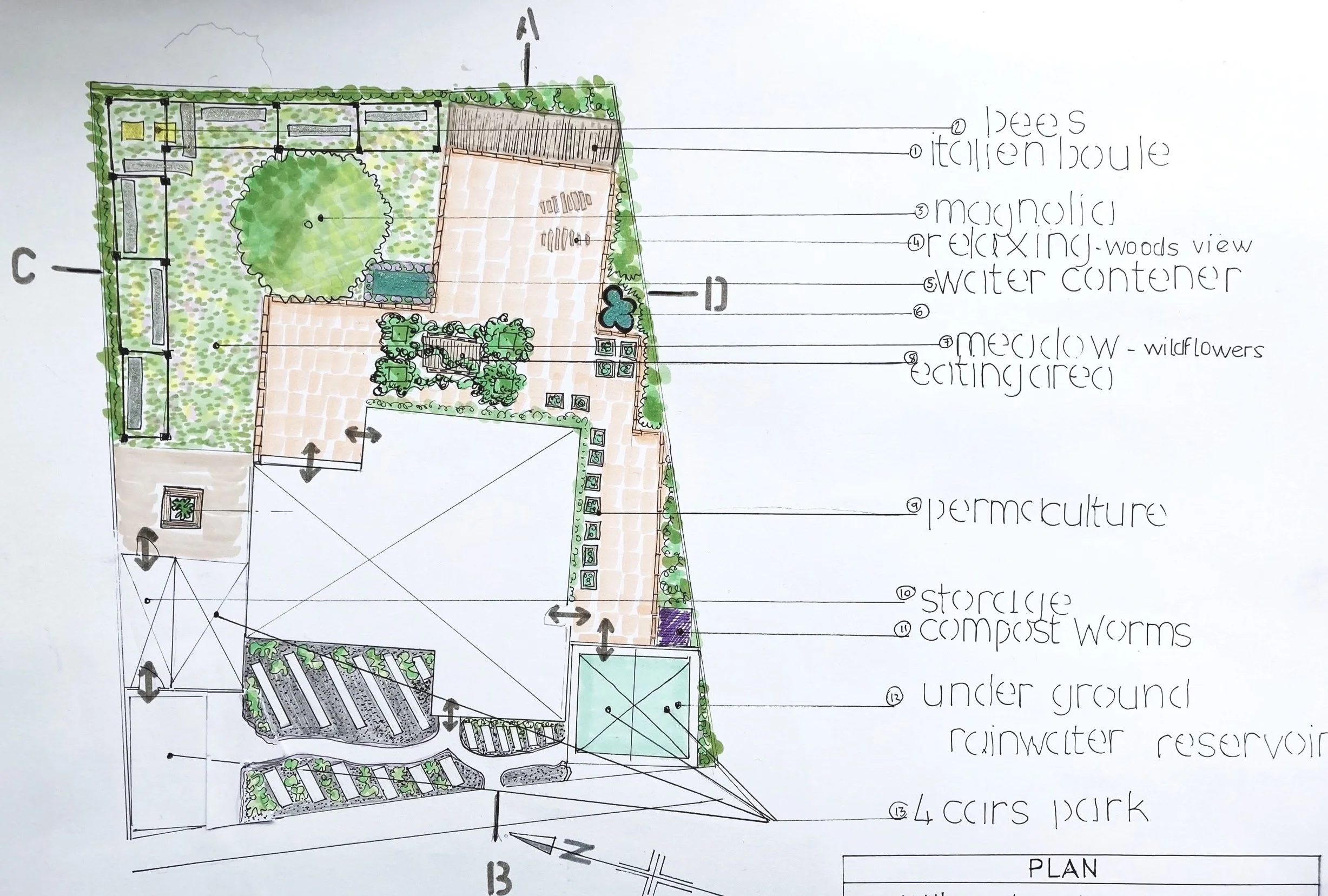

A hand-drawn landscape plan featuring trees, plants, pathways, a pond, and garden areas with labeled sections including trees, a fence line, a magnolia tree, a woods view, a water container, wildflowers, permaculture, compost worms, underground rainwater reservoir, and a CCCS park.

A Bocce pitch, italian boulle, was ask by the client. Permaculture boxes under the kitchen window, also some close to the water feature (portuguese design). The only issue to waste of resources, is to reduce food, and water waste, reduce meat consumption, recycle compost, reduce consumption, use renewable energy, electrical vehicle. In this garden rainwater will be collected, a kitchen garden in permaculture is organise on the sunniest part, with a compost, electrical car will be suggested with electrical terminal. On the left part of the terrace it is possible to practice yoga or meditation, in front of the magnolia. Magnolias are one of the most loved flowering trees for their stunning blooms and dramatic white, cream, pink or purplish flowers. Biodiversity will be stimulated by introduction of bees behind walls to give an access to bees to the the Chesham Bois Wood of 16ha. Did you know that a bee can fly 30km to find food ? The proximity of the wood is a real opportunity.

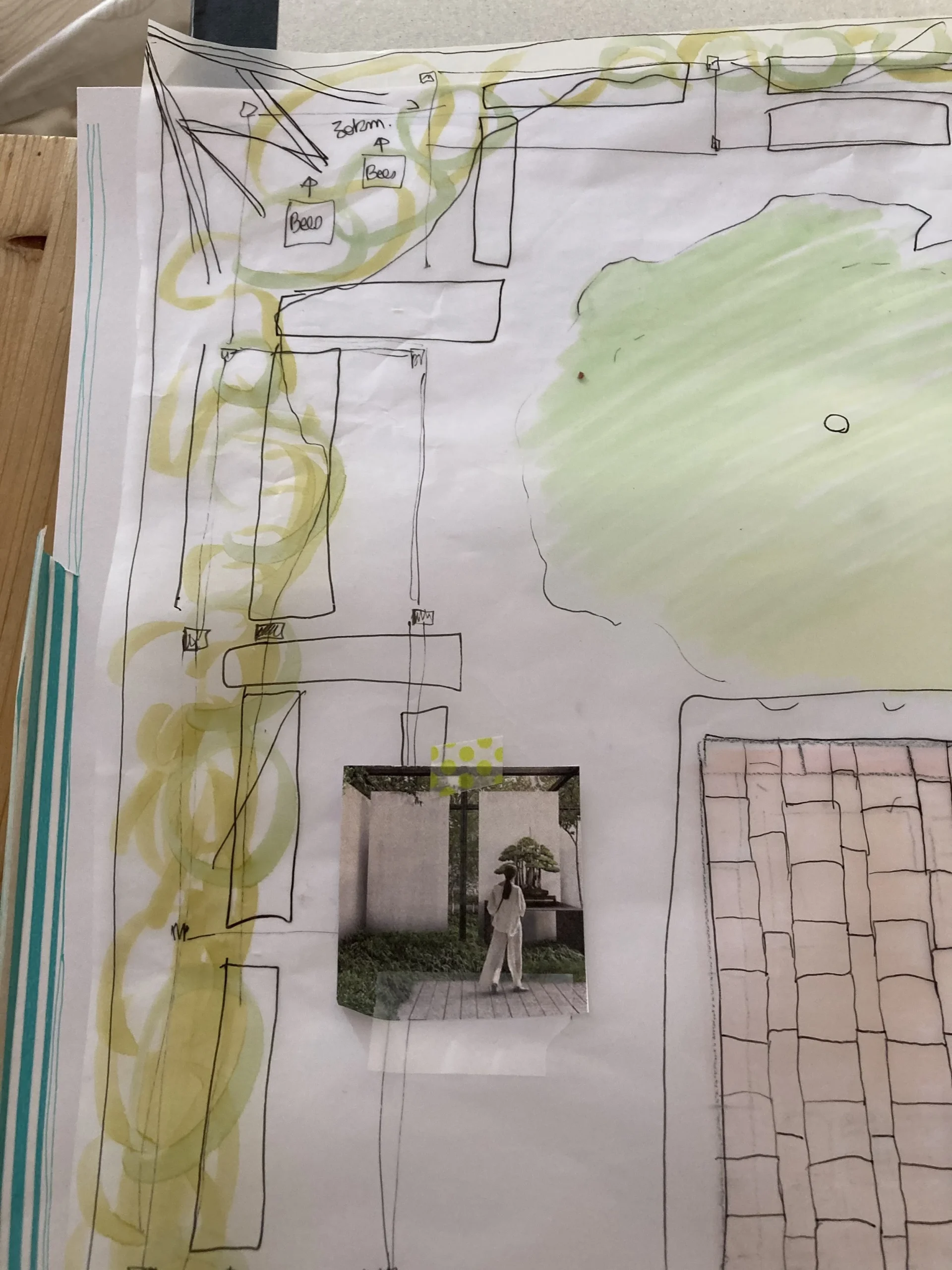

A hand-drawn landscape plan with an illustrated photo of a person in a garden. The plan includes pathways, trees, and plantings marked in green and yellow, with some labeled areas.

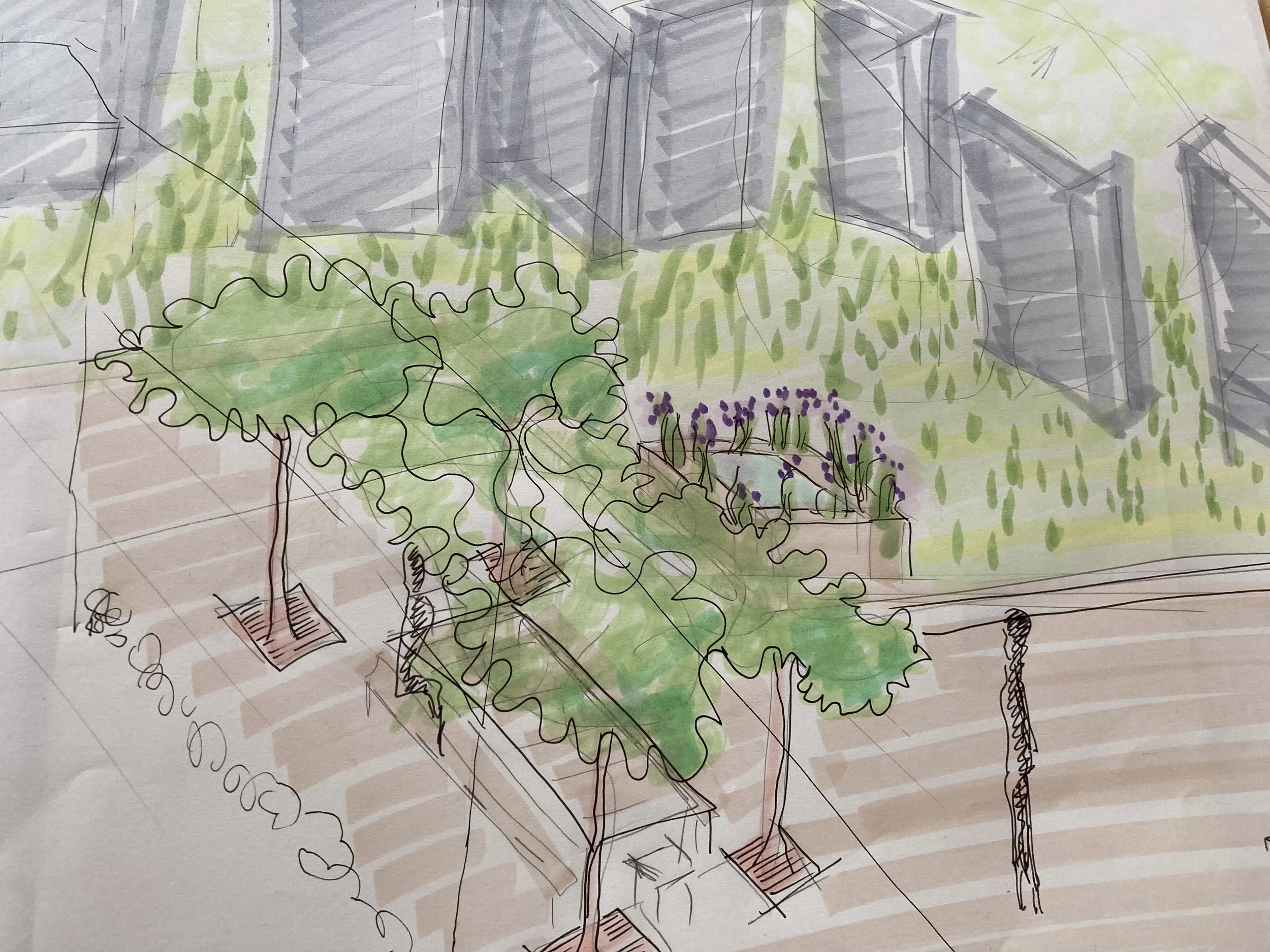

Sketch of a rooftop garden with trees, planters with purple flowers, and a cityscape in the background.

The major innovation in the garden is the Japanese left corner, build around 8 walls along a natural hedge of adapted trees.

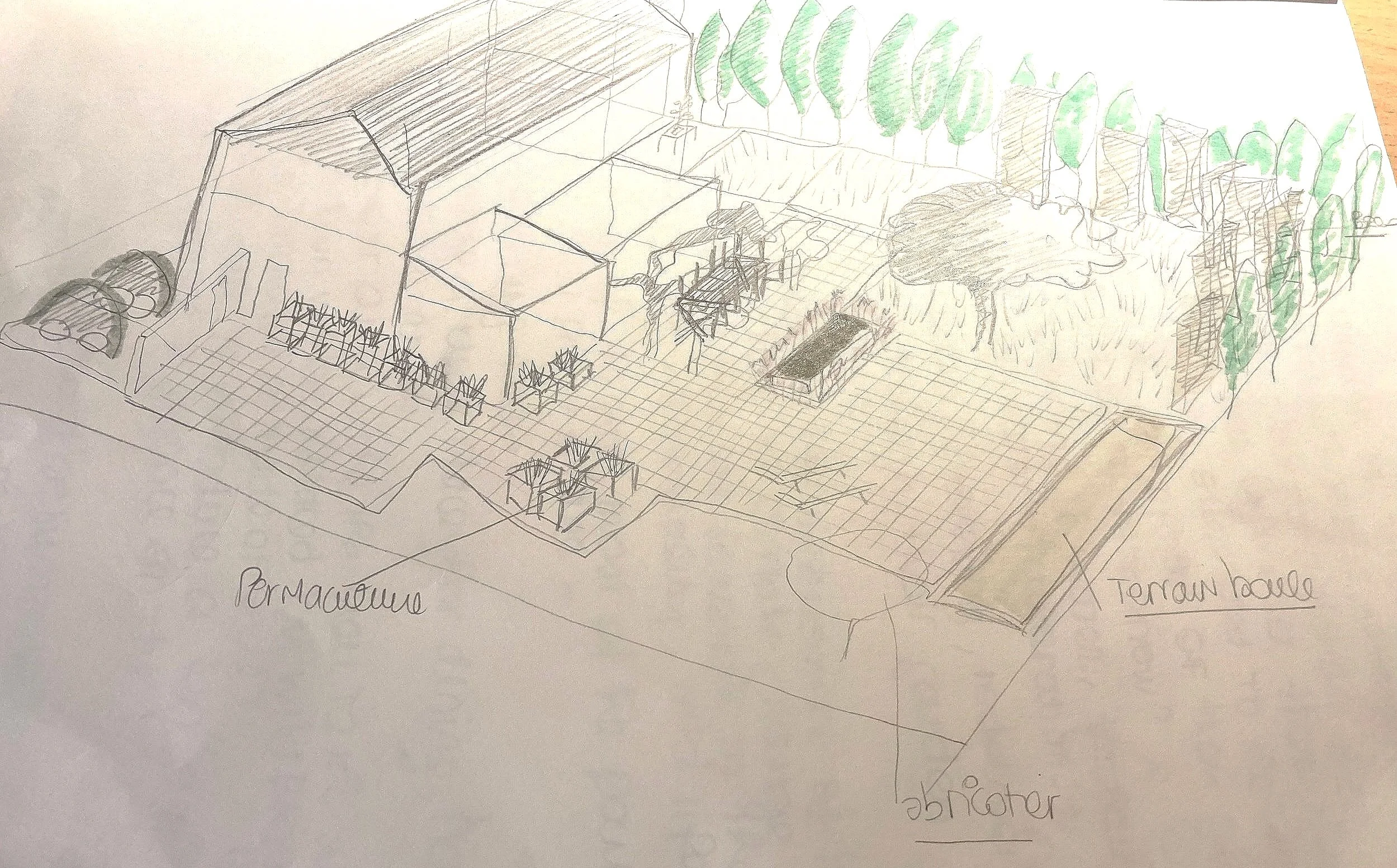

Hand-drawn sketch of a backyard with labeled areas including a greenhouse, garden beds for vegetables, a terrarium, and a patio with seating and potted plants, surrounded by a row of trees.

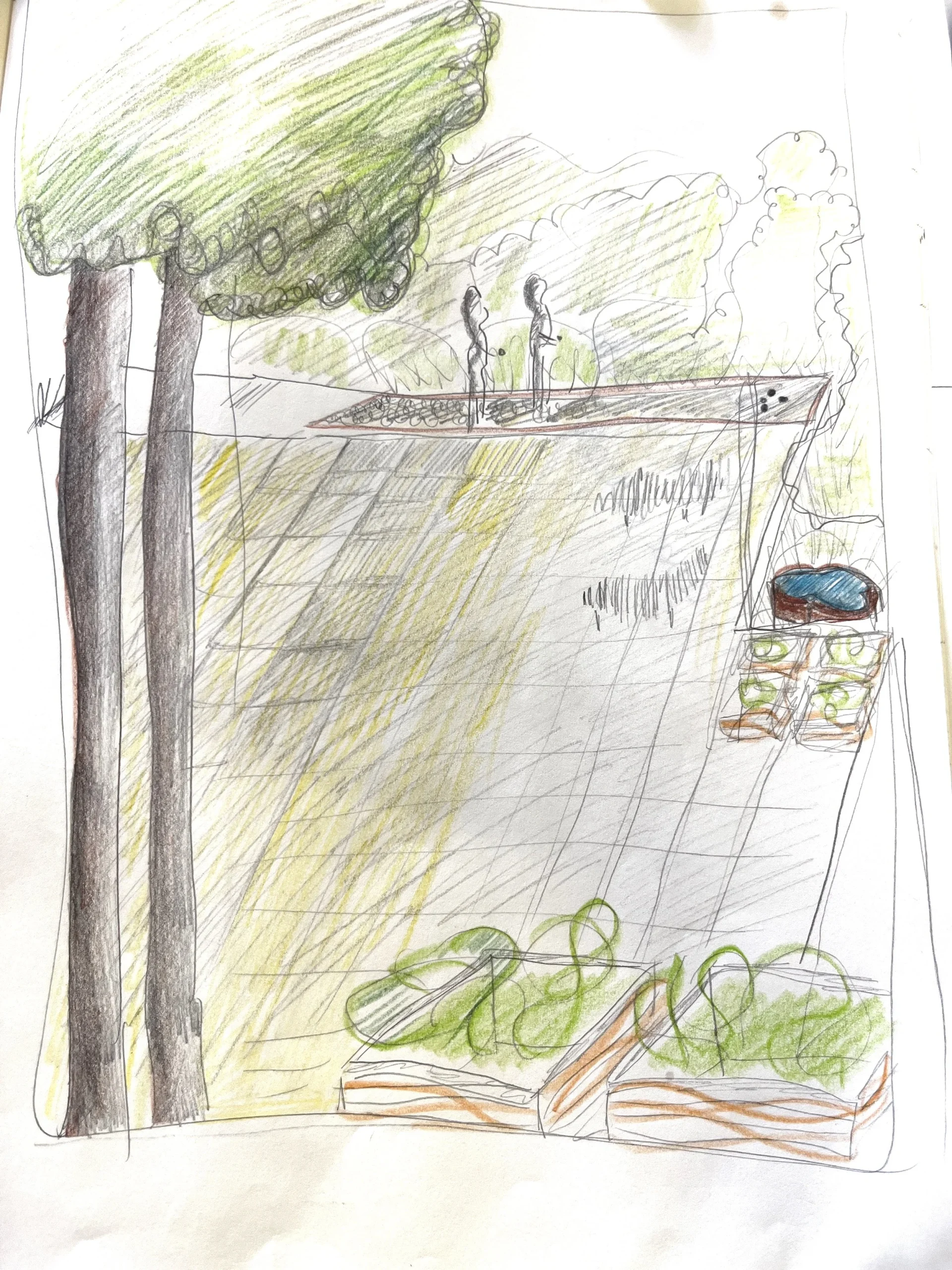

Sketch of a park scene with two trees on the left, a sloped pathway, two people walking at the top, a small seating area with a bench and a blue umbrella, and some green plants and flower boxes.

Axonometry - east side view

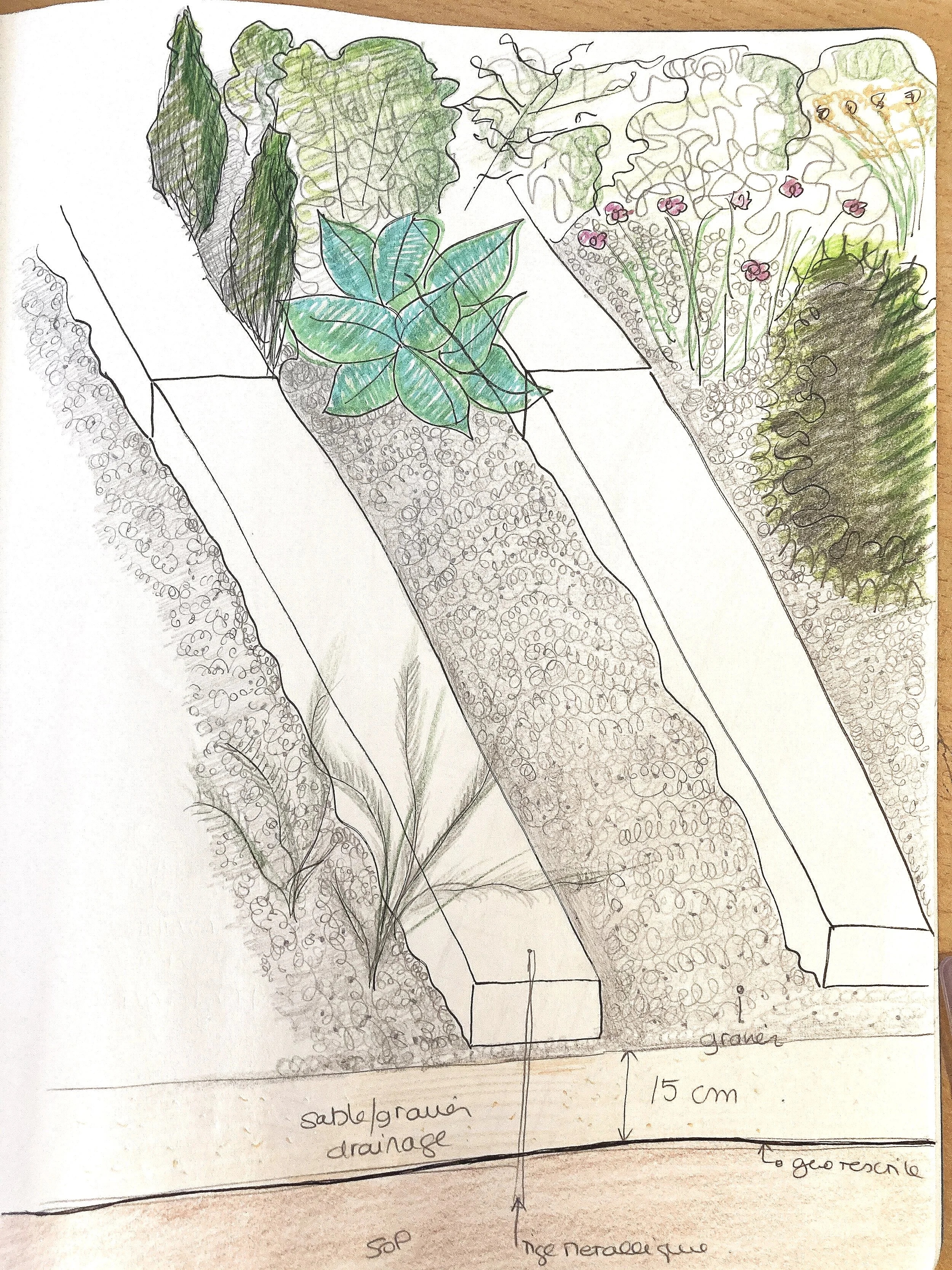

Sketch of a garden bed with various plants, including leafy greens and flowering plants. Decor and irrigation details are annotated, highlighting gravel drainage areas, a succulent, and plant spacing.

Bocce pitch

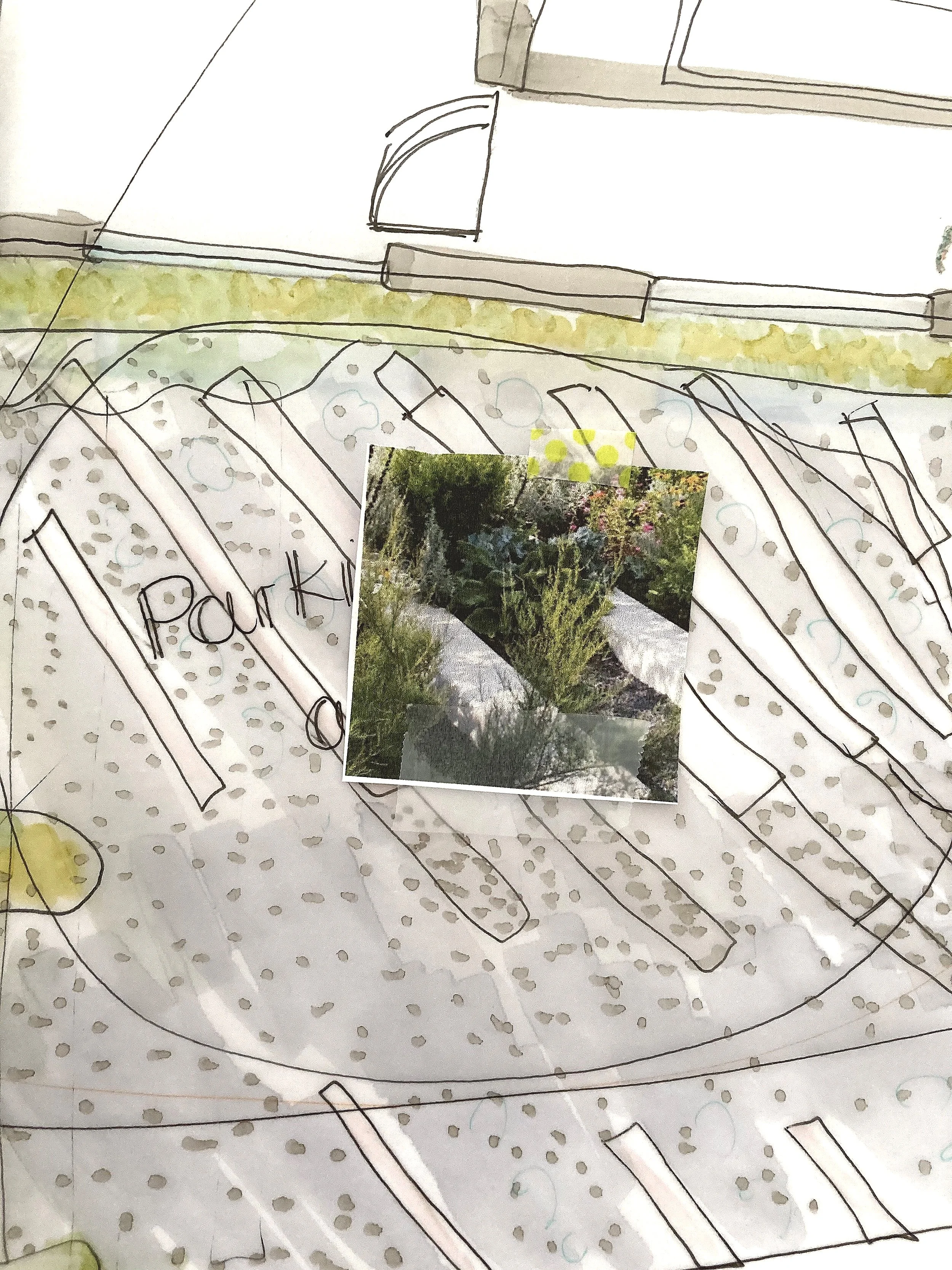

A mixed media illustration combining a hand-drawn garden layout with a real photograph of a garden center or nursery, featuring lush green plants and flowers. The drawing includes labeled areas like a parking lot and pathways.

An esthetic approach haș been realized in front of the house, you park your car in a sort of wild area, cover by shade plants : hostas, pieris and azalea. white wood beams, or stones will be layed long the pathway between the 2 parking area . The soil will be covered by black gravel, to make a contrast with the white color of the slice of natural stone (beam)

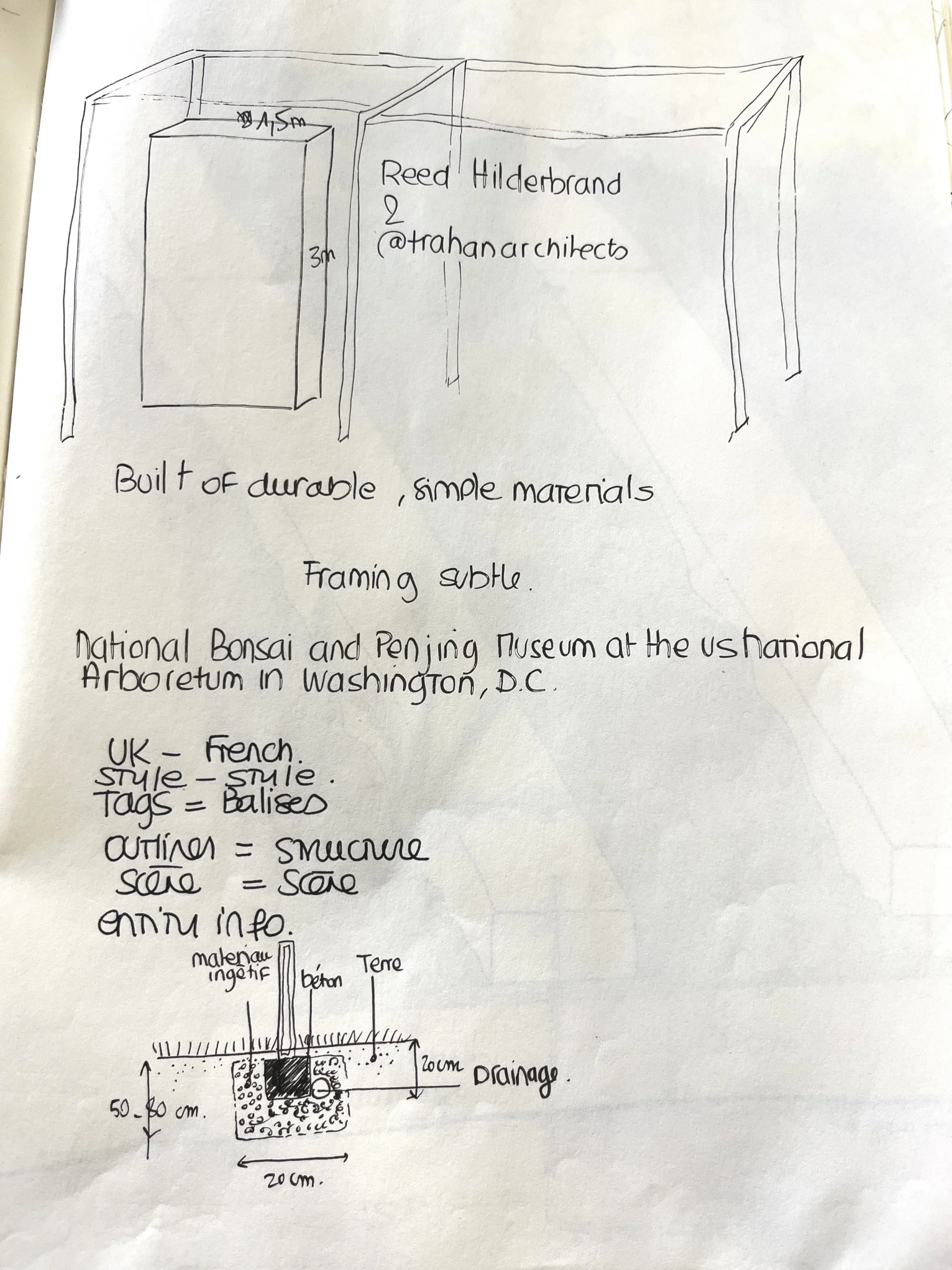

Hand-drawn sketch of a small architectural structure with measurements, along with notes about materials, style, tags, and information about a National Bonsai and Penjing Museum exhibit in Washington, D.C.

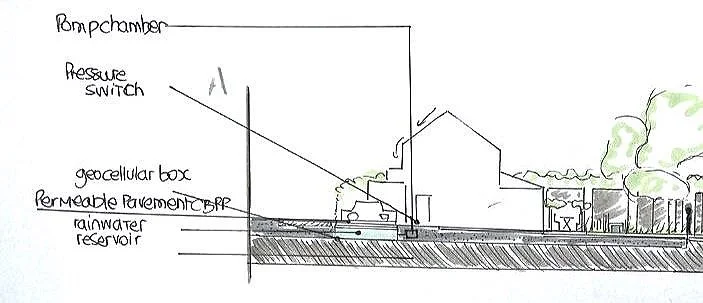

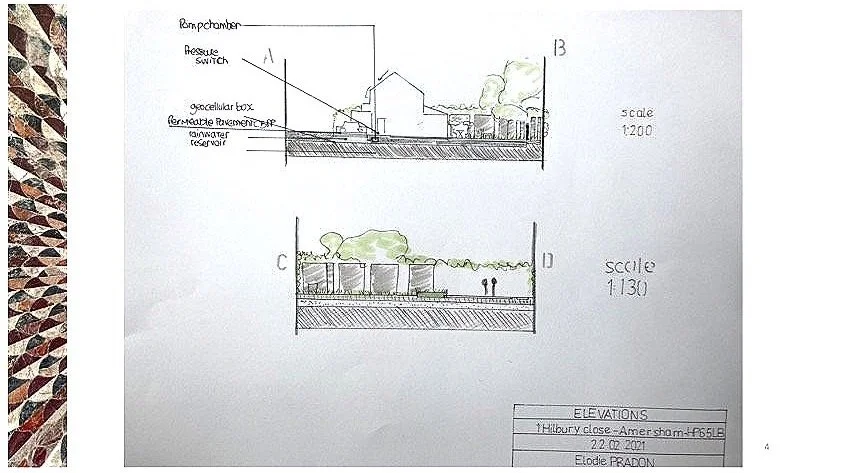

A technical drawing of an outdoor landscape with labeled components including a pump chamber, pressure switch, geocellular box, permeable pavement base, and a mainwater reservoir, with trees and a building in the background.

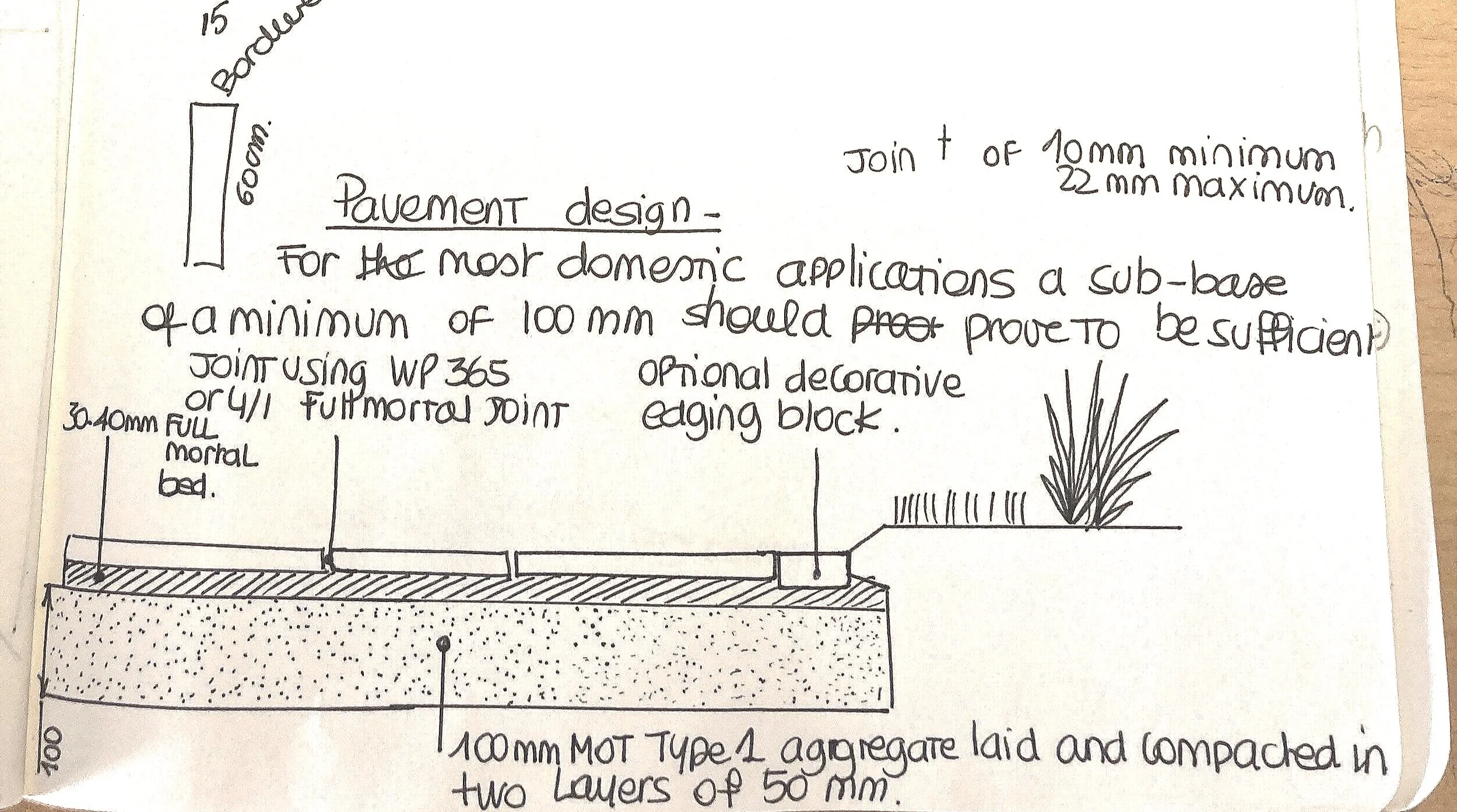

Hand-drawn architectural sketch of pavement design with annotations detailing materials, dimensions, and construction layers, including aggregate, bedding, and decorative edging.

Paving and walls technicals details sketch.

Presentation of the project

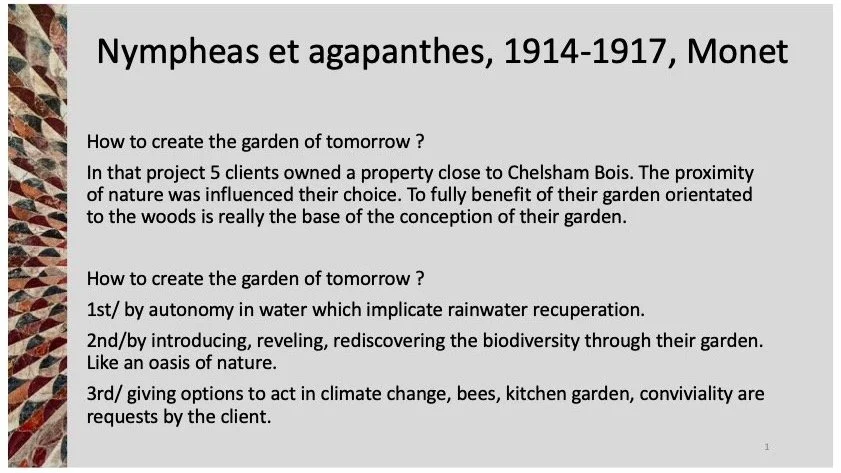

Slide titled 'Nymphea et agapanthes, 1914-1917, Monet' with text about creating a future garden through water autonomy, biodiversity, and climate change actions, and featuring a colorful, patterned border on the left side.
Collage of various outdoor and artistic elements, including a pond with lily pads, garden rocks with plants, a decorative table, a patterned artwork, a person in a pose near a wall, and a colorful architectural structure.

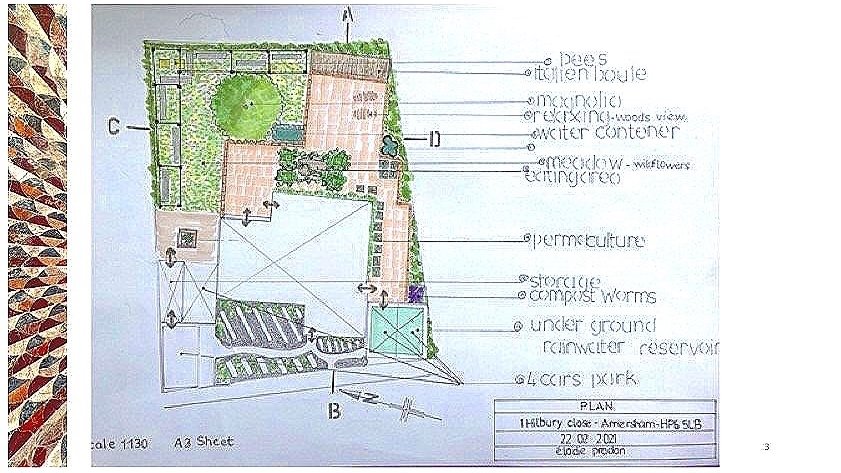

Site plan of a backyard showing various features including a deck and kitchen, vegetable and flower gardens, a water container, a permaculture area, storage, compost bins, an underground rainwater collector, and a Lears park.
Hand-drawn architectural elevation plan of a landscape design with notes on features like ramps, pressure switches, and specification boxes, including scale details.

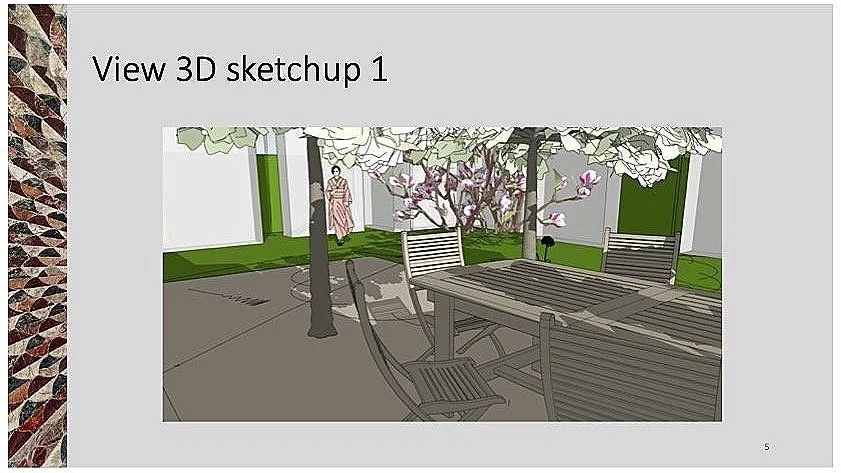

3D sketch of a backyard patio with a wooden table, four chairs, a blossoming tree, two green walls, a white fence, and a person in a pink dress in the background.

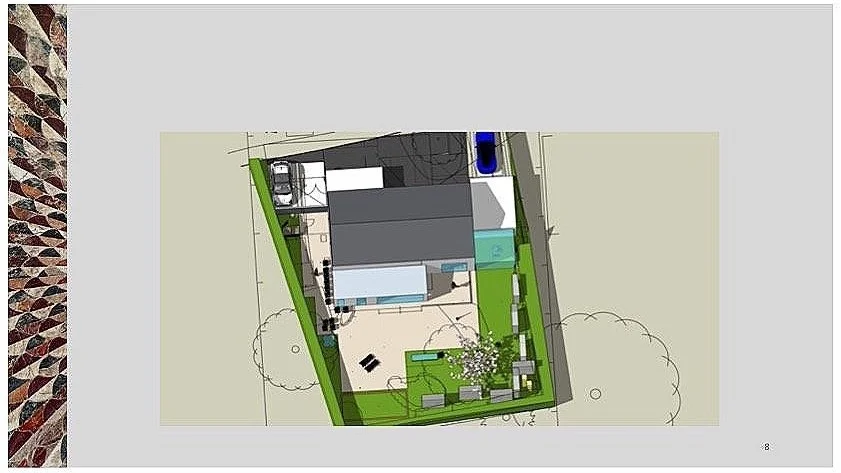

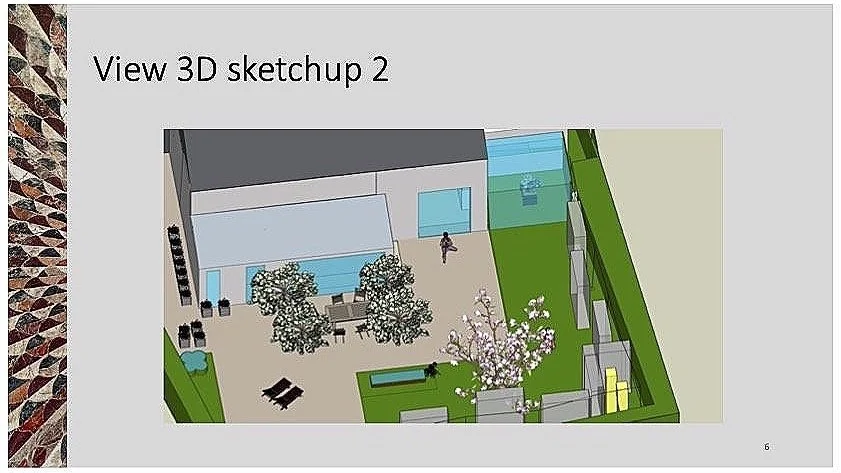

3D rendered top view of a backyard with patio, trees, grass area, fence, and outdoor furniture.

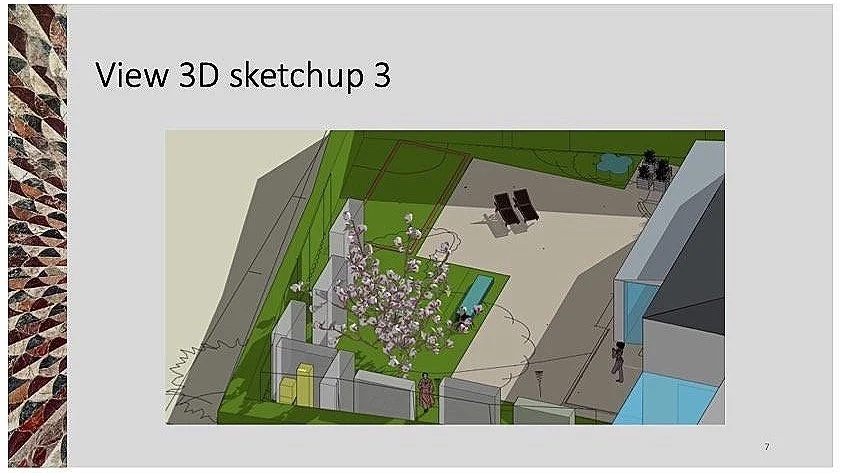

3D sketch of a backyard design featuring a lawn with a tree in blossom, a small pool, two lounge chairs, a sports court, and surrounding structures including a fence and buildings.
A top-down view of a residential property layout with designated areas including a house, backyard, pool, driveway, and landscaped yard with trees.

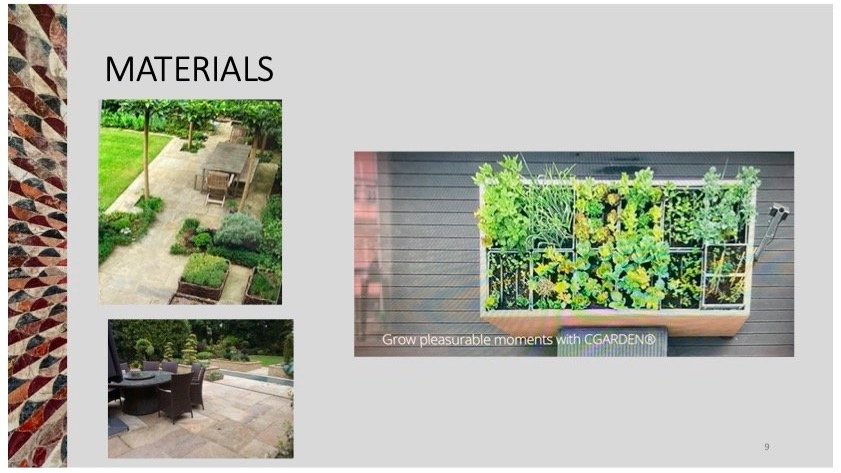

A digital presentation slide showing materials for gardening, including images of a garden path with lounge chairs, a patio with a dining table, and a rooftop garden with various plants in a planter.

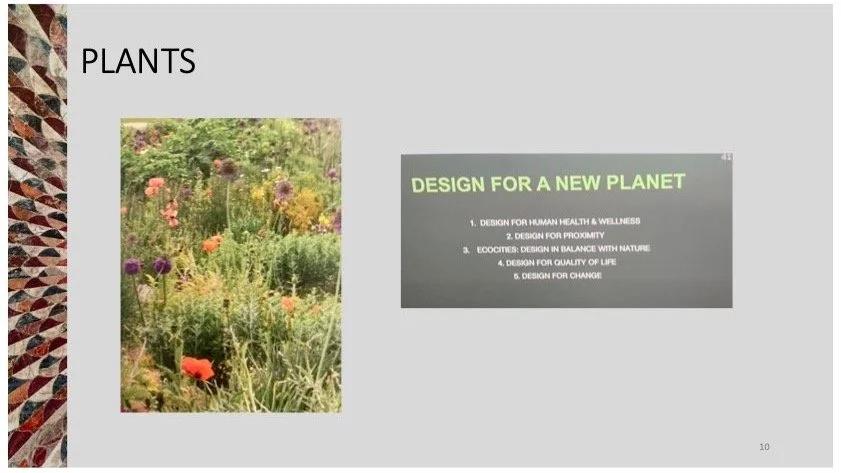

Slide with title 'Plants' showing a photo of a garden with colorful flowers and a presentation slide titled 'Design for a New Planet' listing five points related to designing for human health, proximity, ecological balance, quality of life, and change.
